PRECISION QUALITY CONTROL
Precision Quality Control for CNC Machined Components
Quality begins with a clear understanding of the controlled drawing, revision and customer requirements. Golden Rainbow aligns manufacturing, process control and inspection planning with component features, verification needs and the records defined for each OEM project.
Inspection scope and documentation are aligned with the approved drawing and customer requirements.
Verification scope is determined by component geometry, material, tolerance, measurement access and required records.

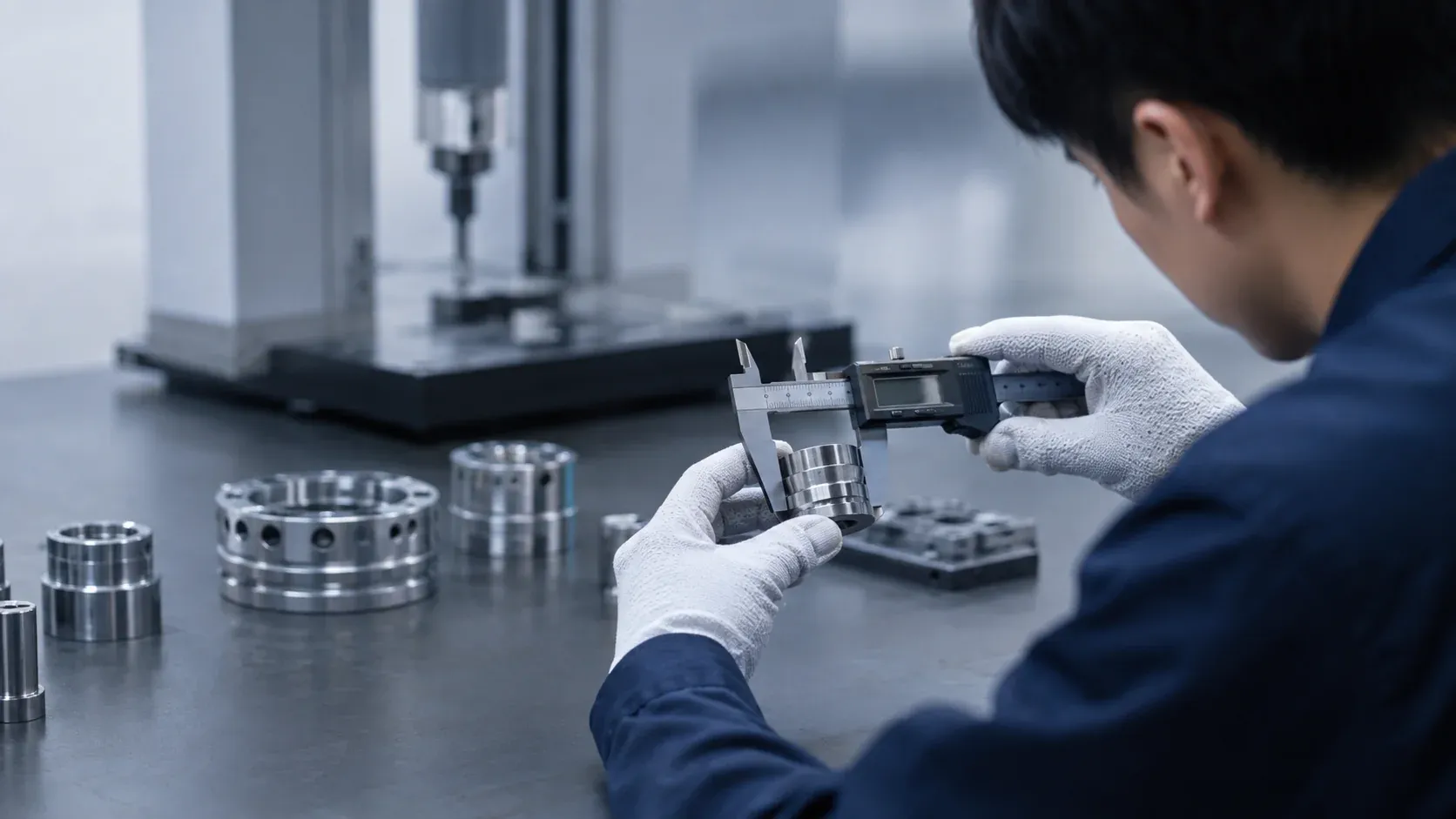

Real Golden Rainbow inspection environment for precision CNC machined components.
Drawing review / in-process inspection / final verification
QUALITY ASSURANCE OVERVIEW

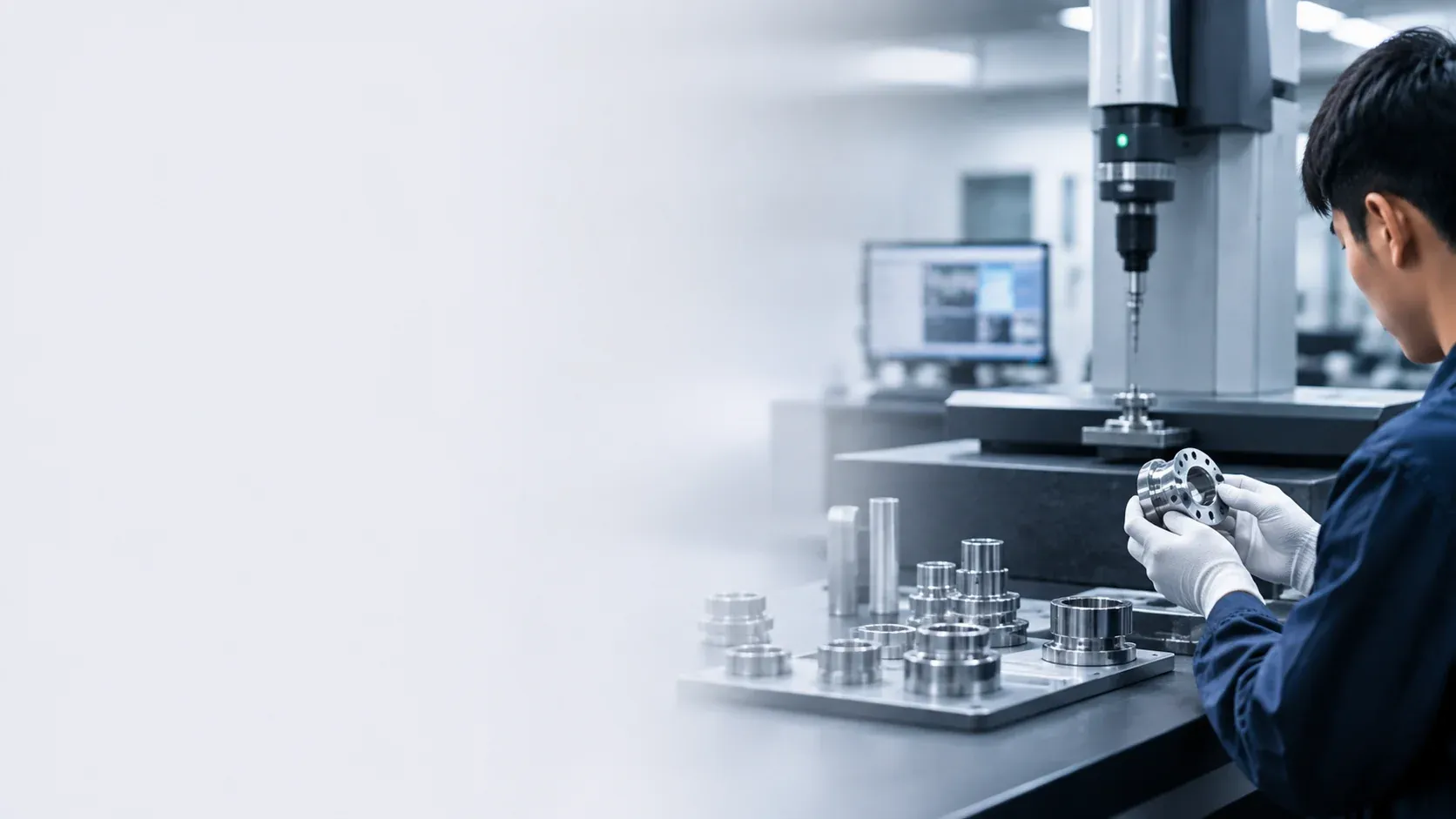

Quality Assurance Throughout Every Manufacturing Stage
Effective quality control connects engineering requirements with manufacturing execution. Before production, Golden Rainbow reviews the controlled drawing, model, revision, material, critical features, referenced specifications and requested inspection deliverables.
Questions affecting manufacturability or verification are raised before release. During manufacturing, selected characteristics are checked at planned stages so setup or process variation can be identified before final inspection. Final records follow the component's approved requirements.
INSPECTION EQUIPMENT

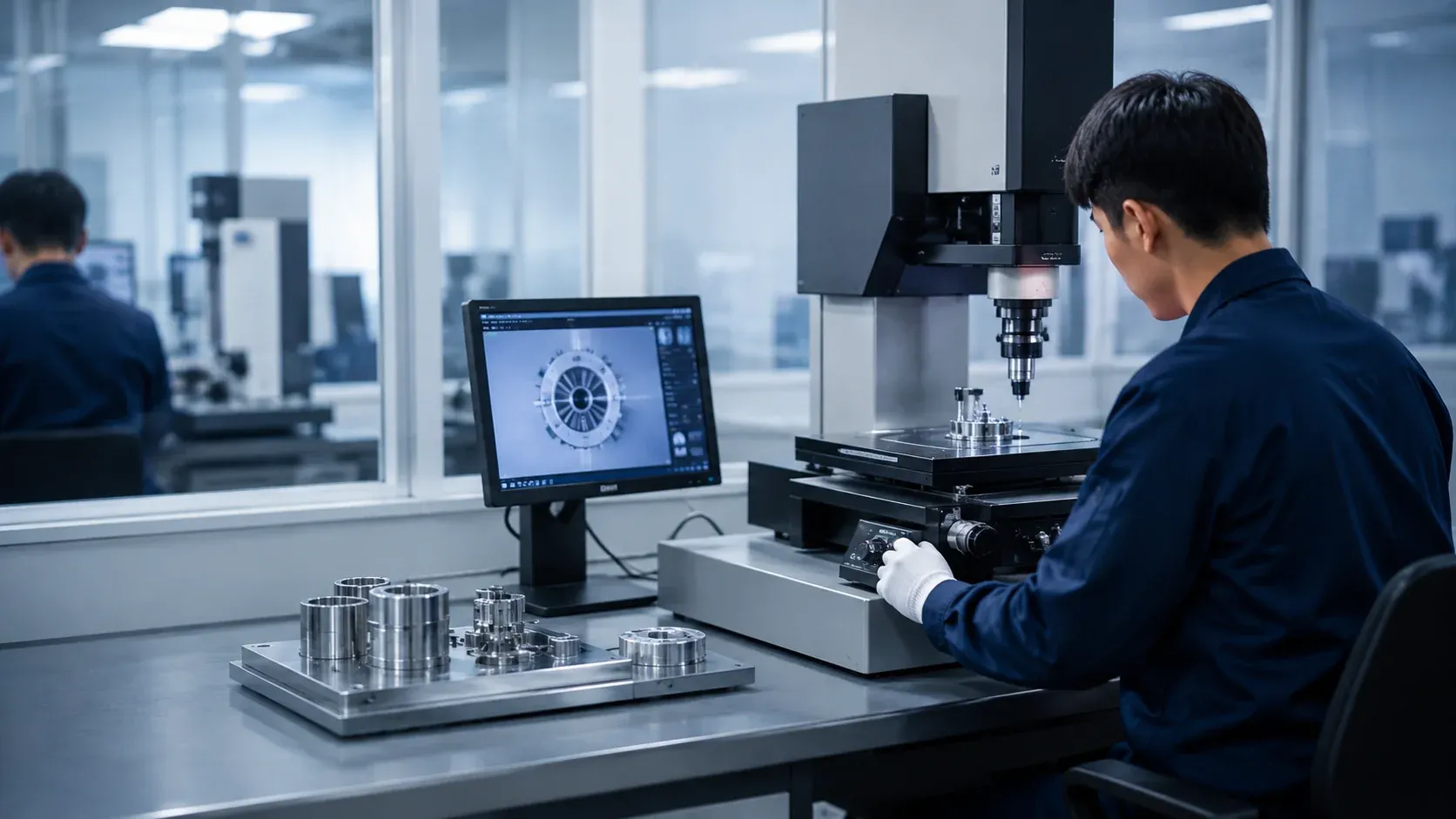

Advanced Inspection Equipment for Precision Manufacturing
Inspection equipment should be selected around the feature being evaluated—not presented as a generic machine list. Feature type, tolerance, datum relationships, accessibility, part stability, surface condition and required evidence influence the measurement method.
Golden Rainbow reviews these inputs when planning inspection for each component. The method, setup and reporting scope are confirmed for the RFQ before production; no single instrument is suitable for every characteristic.
CMM MEASUREMENT

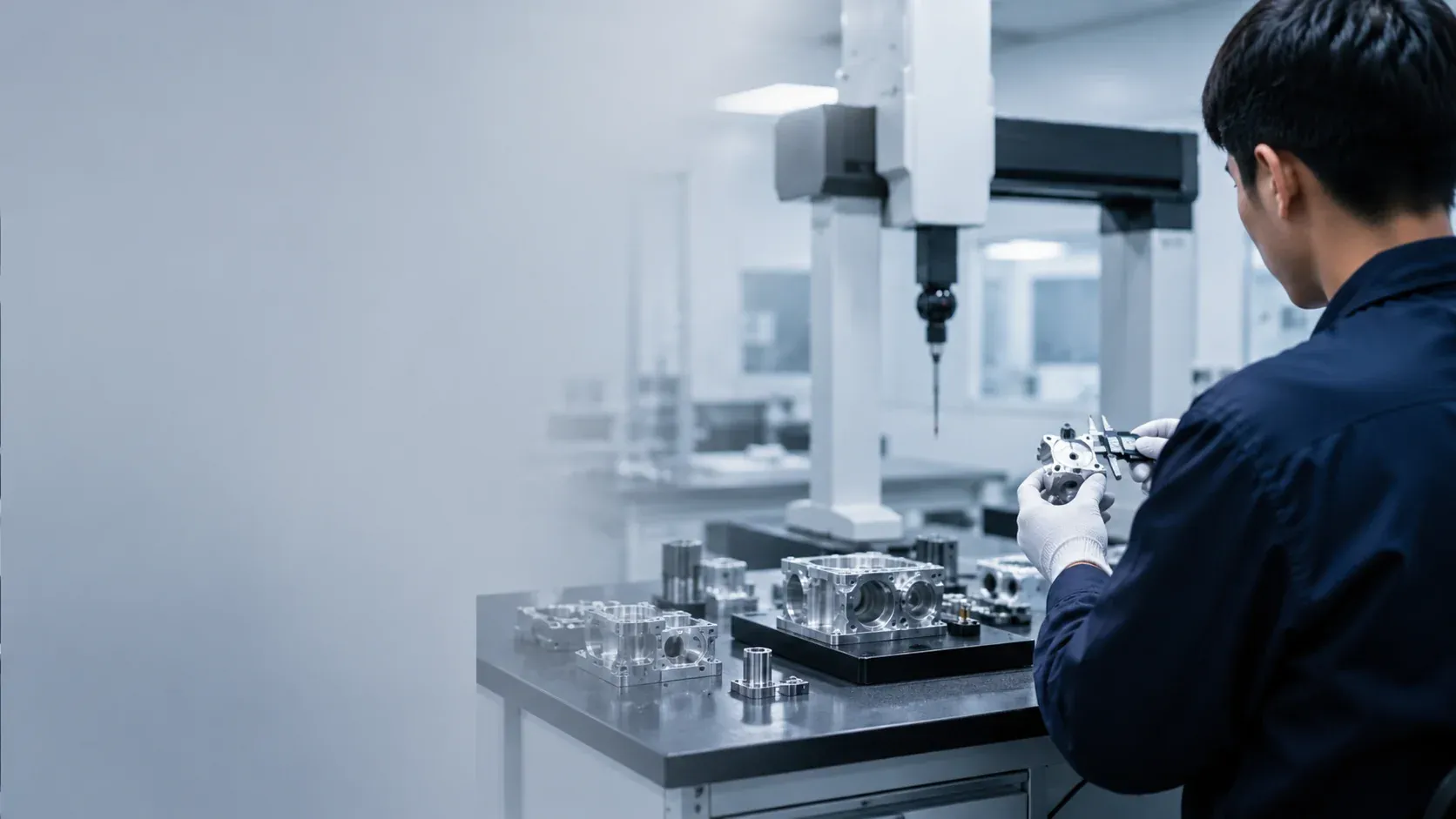

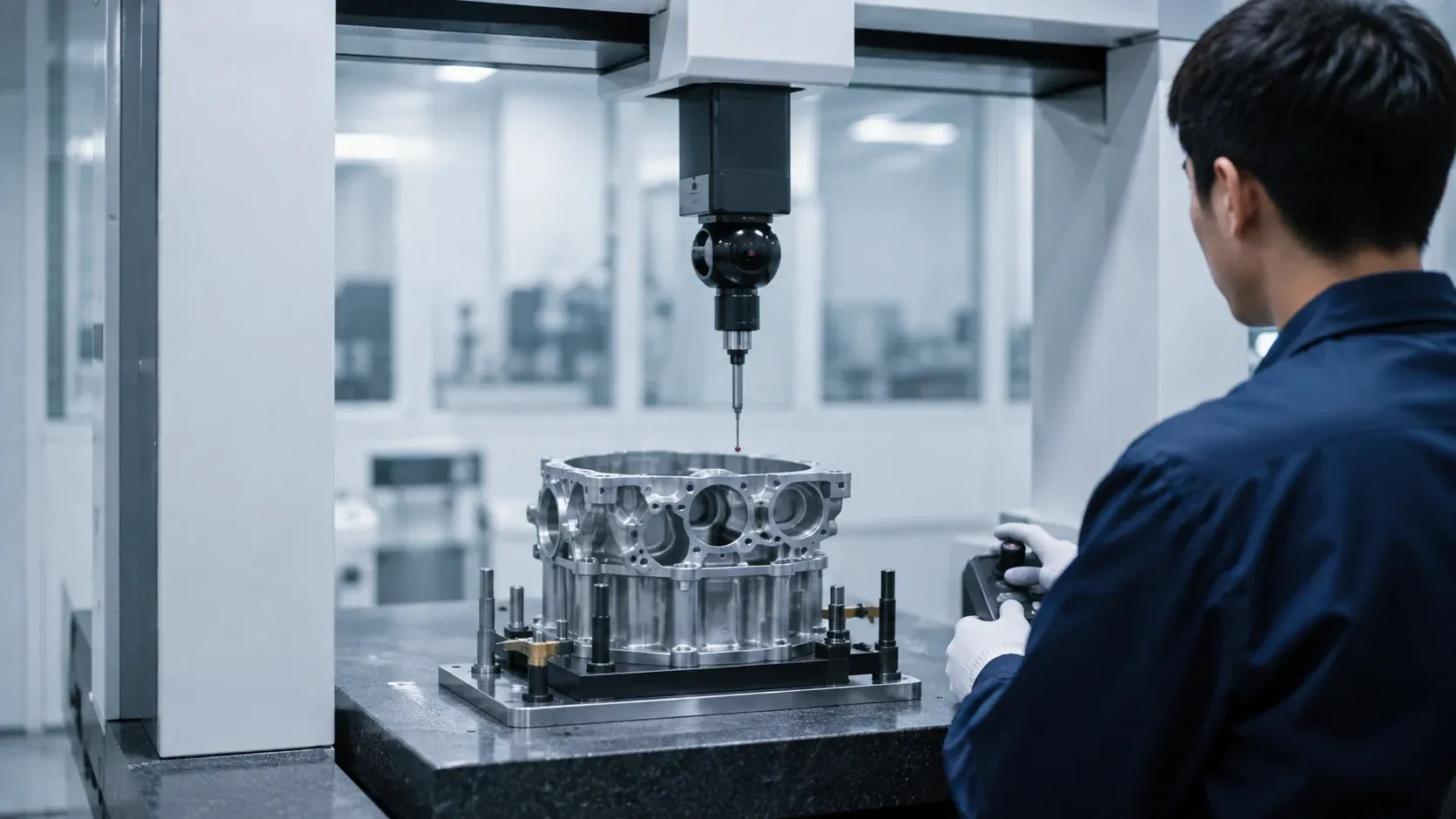

Coordinate Measuring Machine (CMM) Inspection for High Accuracy
Coordinate measuring machine inspection can support evaluation of complex geometry, feature position, profiles, datum relationships and precision interfaces when appropriate. A useful CMM plan begins with the controlled drawing and defines part location, datums and reported characteristics.
Suitability depends on part size, geometry, fixturing, feature access, tolerance and the customer's reporting format. CMM use is confirmed within the project-specific inspection plan rather than treated as a universal verification method.
DIMENSIONAL INSPECTION
Dimensional Inspection for Tight Tolerance Parts
Dimensional inspection should be matched to the characteristic, tolerance, datum relationship and evidence required. Direct and comparative methods may be used at different manufacturing stages based on feature access, surface condition, part stability and the approved inspection plan.
Selected dimensions can be checked during setup and machining to provide timely process feedback. Final verification reviews the agreed characteristics using methods appropriate to the controlled drawing and project-specific inspection requirements.
MANUFACTURING TRACEABILITY

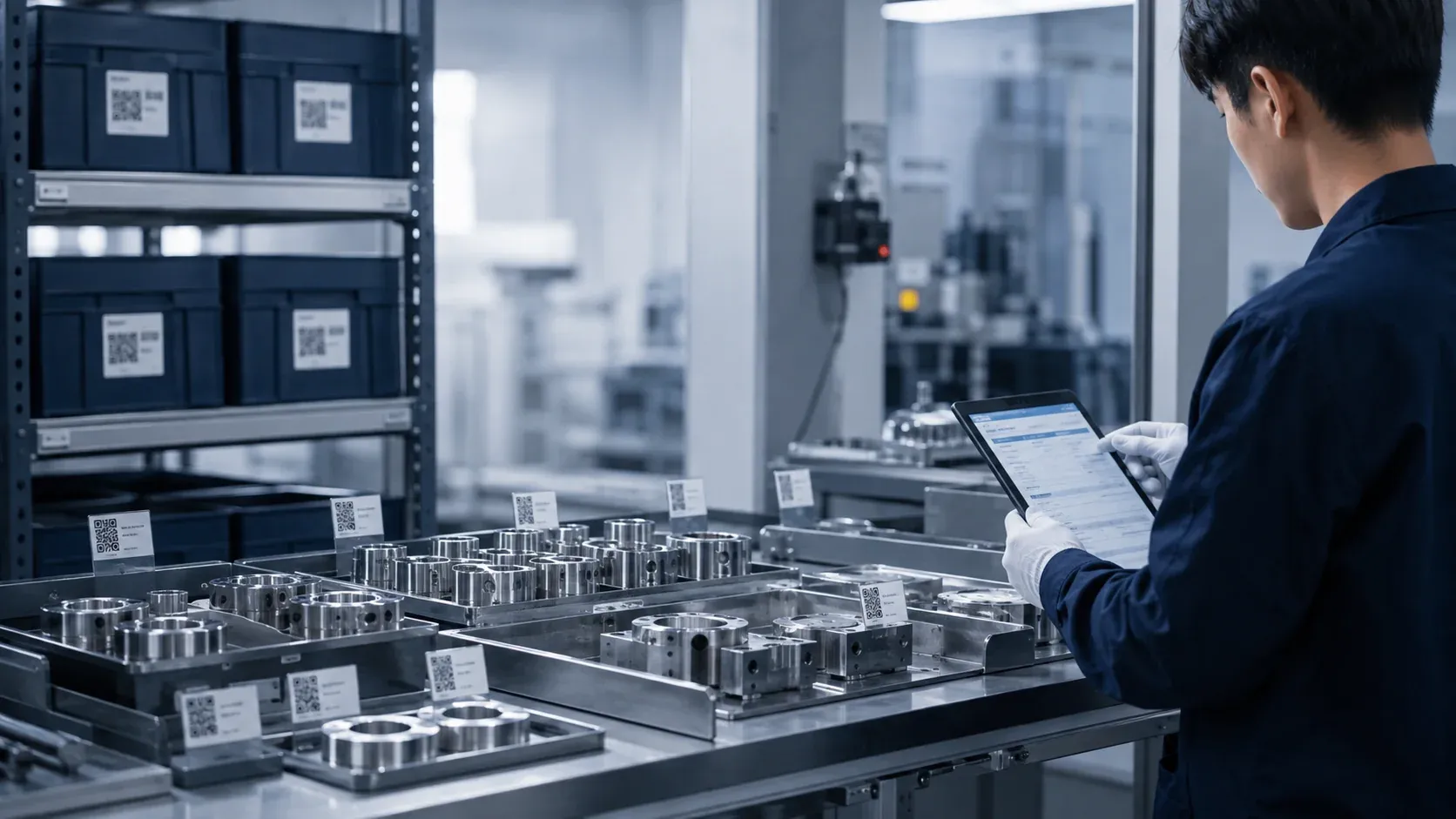

Manufacturing Traceability for Reliable CNC Production
Traceability requirements vary by customer, component and application. The agreed project scope may connect the controlled drawing revision, material or supplied-item information, manufacturing status, inspection records, component identification and shipment documentation.
Required identifiers, lot relationships, record formats and retention expectations should be stated in the RFQ and purchase requirements. Golden Rainbow then reviews what information is available, how it should move through the manufacturing route and which records must accompany the order.
FINAL INSPECTION

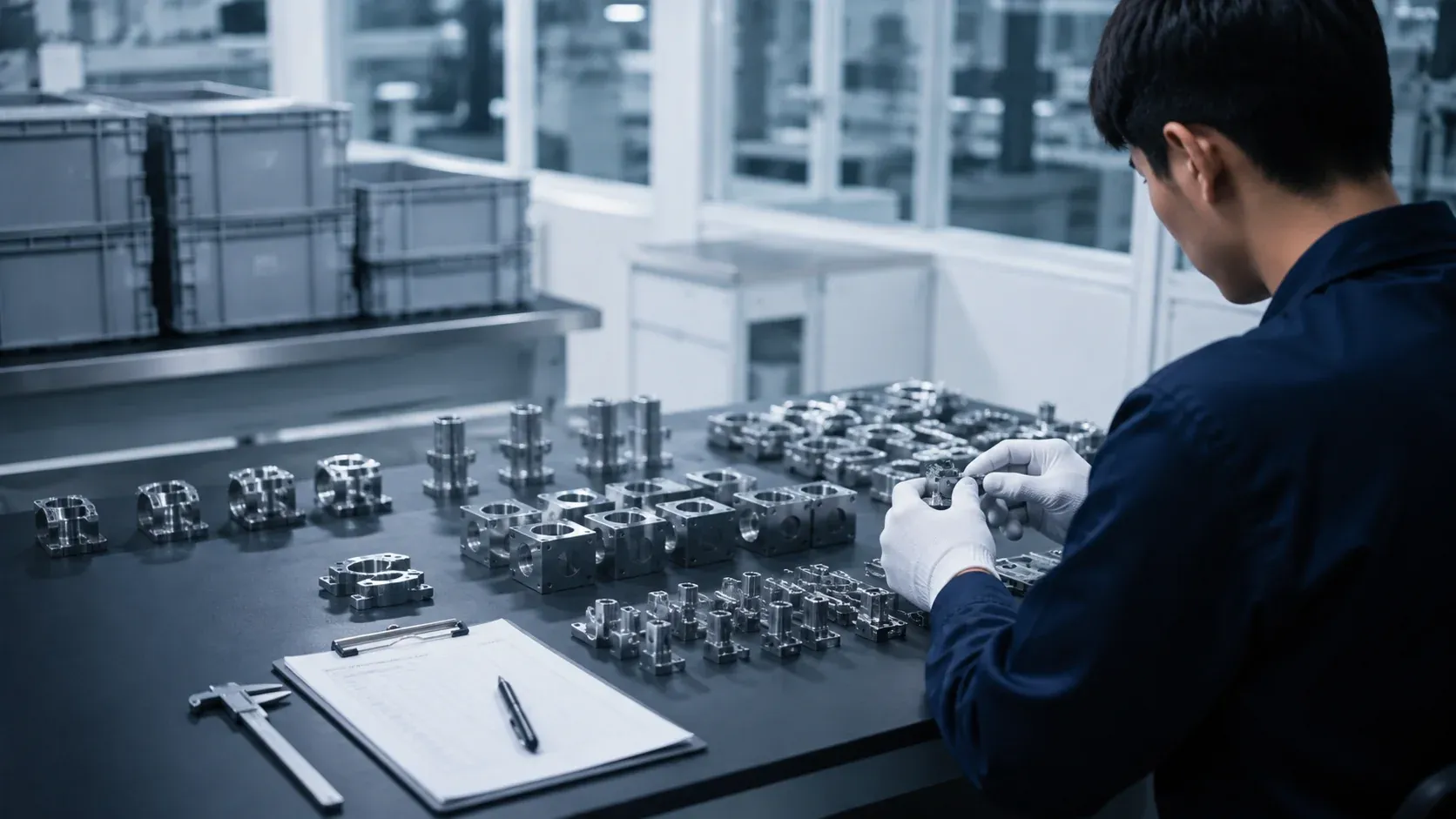

Final Inspection Before Shipment
Final inspection brings together the characteristics, records and release requirements agreed for the order. Before shipment, the applicable drawing revision, selected features, component identification, required documentation and packaging are reviewed against the approved project scope.
Final inspection does not replace earlier manufacturing controls. It confirms agreed release evidence after first-article and in-process activities are completed where specified. Inspection coverage, sampling and report delivery remain project-defined and are confirmed before order acceptance.
QUALITY REVIEW
Request a Quality Review for Your CNC Project
Send the controlled drawing, model, revision, material, quantity and delivery requirements with the quality information that affects quotation and process planning. Identify critical features, inspection scope, sampling expectations, required records, finishing requirements and referenced customer s
