Drawing and Process Review
Confirm the current drawing, material and customer requirements; then define operations, workholding, critical features and inspection points.
Drawing / revision / plan
CNC TURNING SERVICES
CNC Turning Services for OEM Components
Golden Rainbow supports CNC-turned components from drawing review through prototype and repeat production. We evaluate diameters, bores, threads, grooves, datum relationships, material and inspection requirements before confirming the process plan.
Include the complete drawing and revision so critical diameters, concentric features and inspection requirements can be reviewed together.
Drawing Review
Current drawing and revision
Process Planning
Rotational geometry and setup strategy
Inspection Alignment
Diameters, bores and feature relationships
Precision rotational components
Rotational Geometry Review
Prototype to repeat production
Drawing-led process and inspection planning for custom turned components.
Geometry
Shafts, pins, bushings and sleeves
Features
Diameters, bores, threads and grooves
Review
Datums, setup strategy and inspection

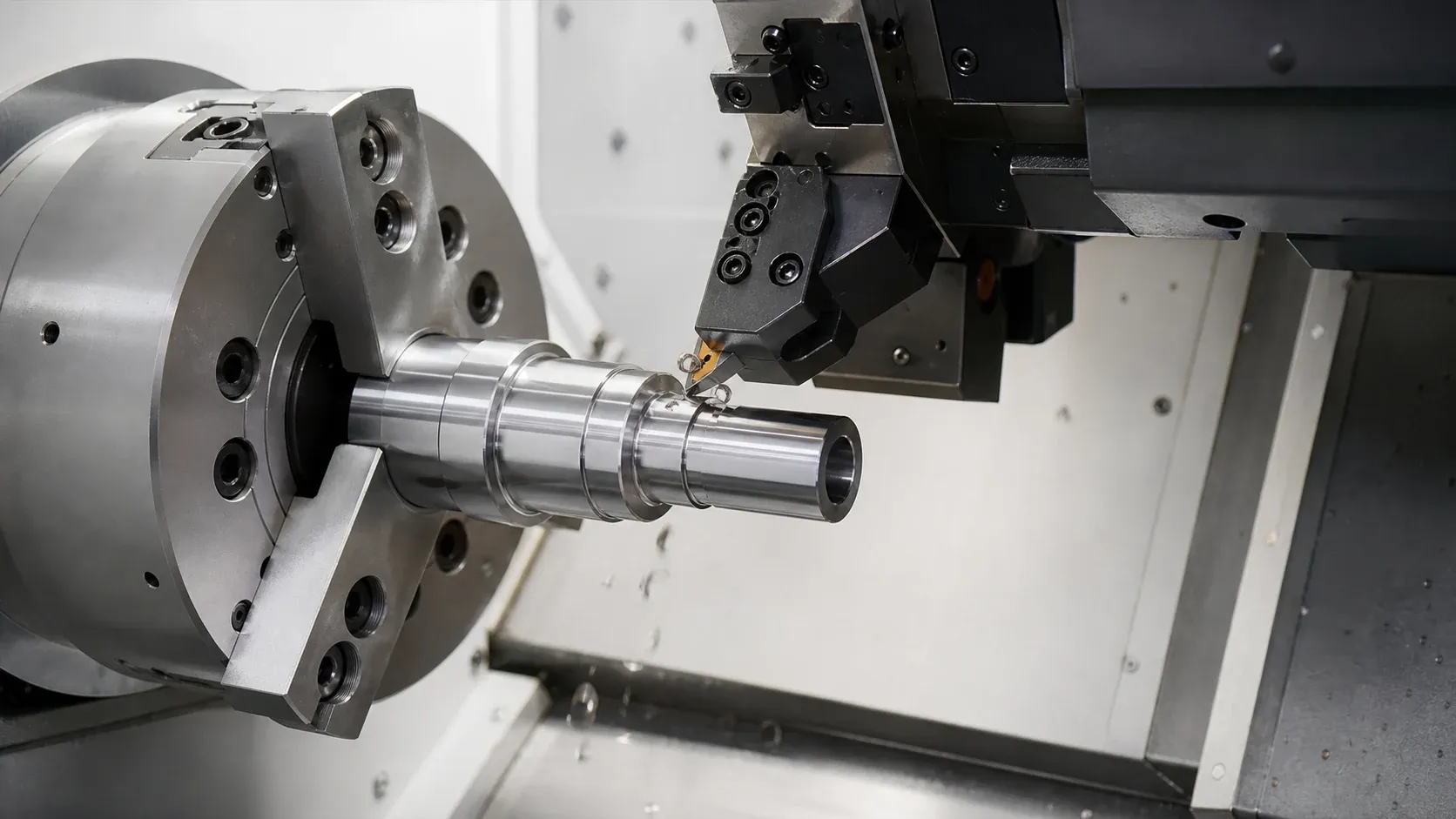

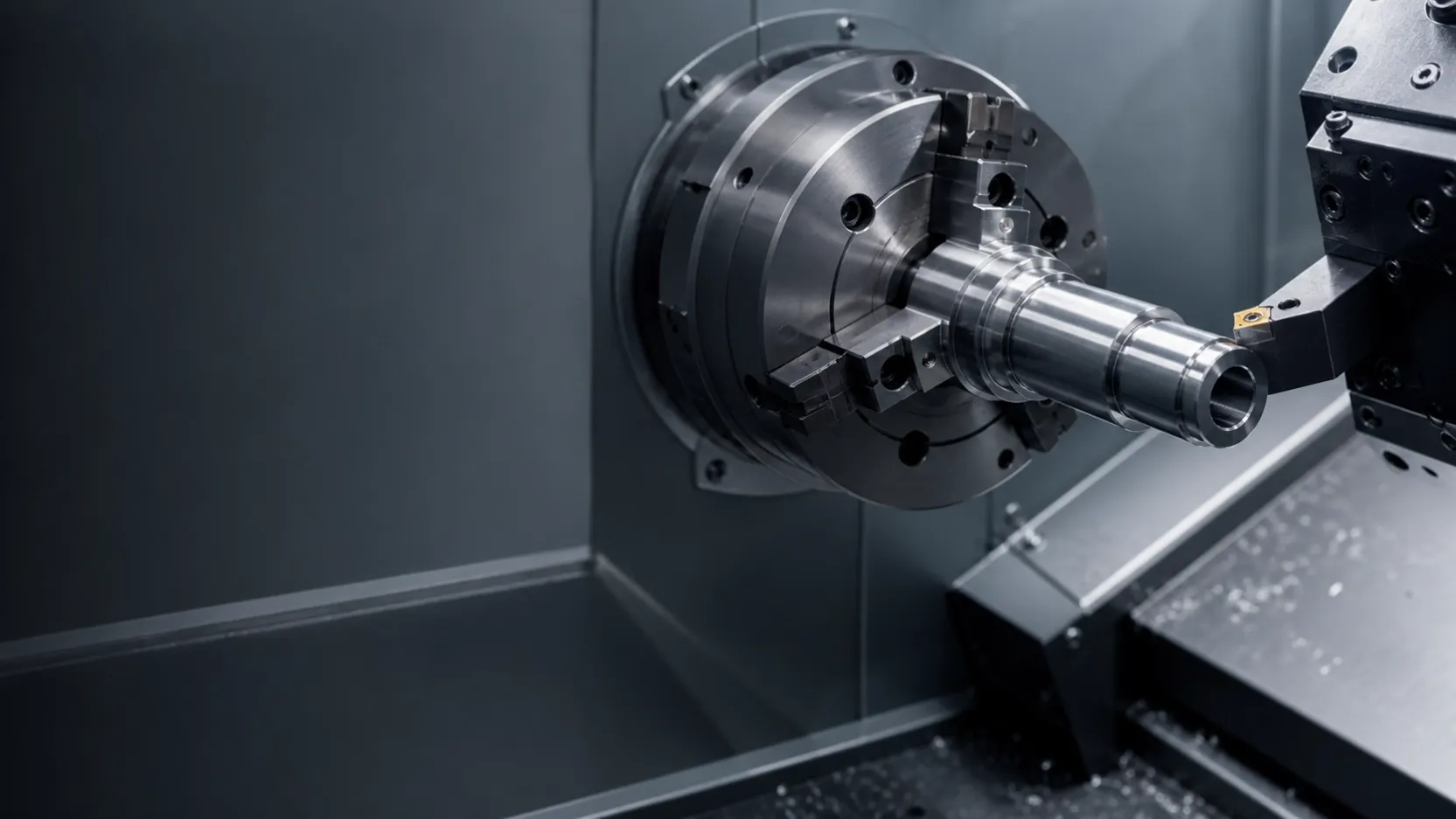

Precision CNC turning of a stepped stainless steel component for OEM applications.
Drawing-led CNC turning
CAPABILITY OVERVIEW
Efficient Processing for Rotational Geometry
CNC turning suits components whose function depends on controlled diameters and features around a common axis. Golden Rainbow reviews datums, length-to-diameter relationships, wall thickness, workholding, secondary operations and inspection access before confirming capability.
Rotational Geometry Review
External and internal features are reviewed as one functional system.
Process and Setup Planning
Workholding, operation sequence and tool access are considered before production.
Prototype-to-Production Support
Prototype, low-volume and repeat requirements follow a controlled technical baseline.
PROCESS CAPABILITY
Turning Operations Planned Around Part Function
CNC turning can combine multiple external and internal features in one process route. Operation sequence depends on geometry, material, stock condition, quantity, workholding and the dimensional relationships that control assembly performance.
External Diameters and Profiles
Straight diameters, steps, tapers and profiles are reviewed against functional fits and datums.
Bores and Internal Features
Through bores, blind bores and internal profiles are evaluated for access, depth, wall thickness and inspection.
Threads and Grooves
Threads, grooves, undercuts and reliefs are reviewed for specification, tool access, edge condition and measurement.
Secondary Operations
Cross holes, flats, slots or off-axis features may require coordinated milling, drilling, Swiss machining or Wire EDM.
MATERIAL REVIEW
Material Condition Influences the Turning Plan
Material grade, condition and stock form influence cutting behavior, chip control, dimensional stability, burr formation and surface finish. Golden Rainbow confirms the exact specification during quotation and aligns it with geometry, setup and inspection requirements.
Metals
Aluminum, stainless steel, titanium and copper alloys are reviewed by exact grade and condition.
Engineering Plastics
Grade, stability, wall thickness, surface condition and handling requirements are evaluated.
Drawing Alignment
Material, geometry, setup strategy, tooling access and inspection method are reviewed together.
QUALITY CONTROL
Inspection Planned for Rotational Features

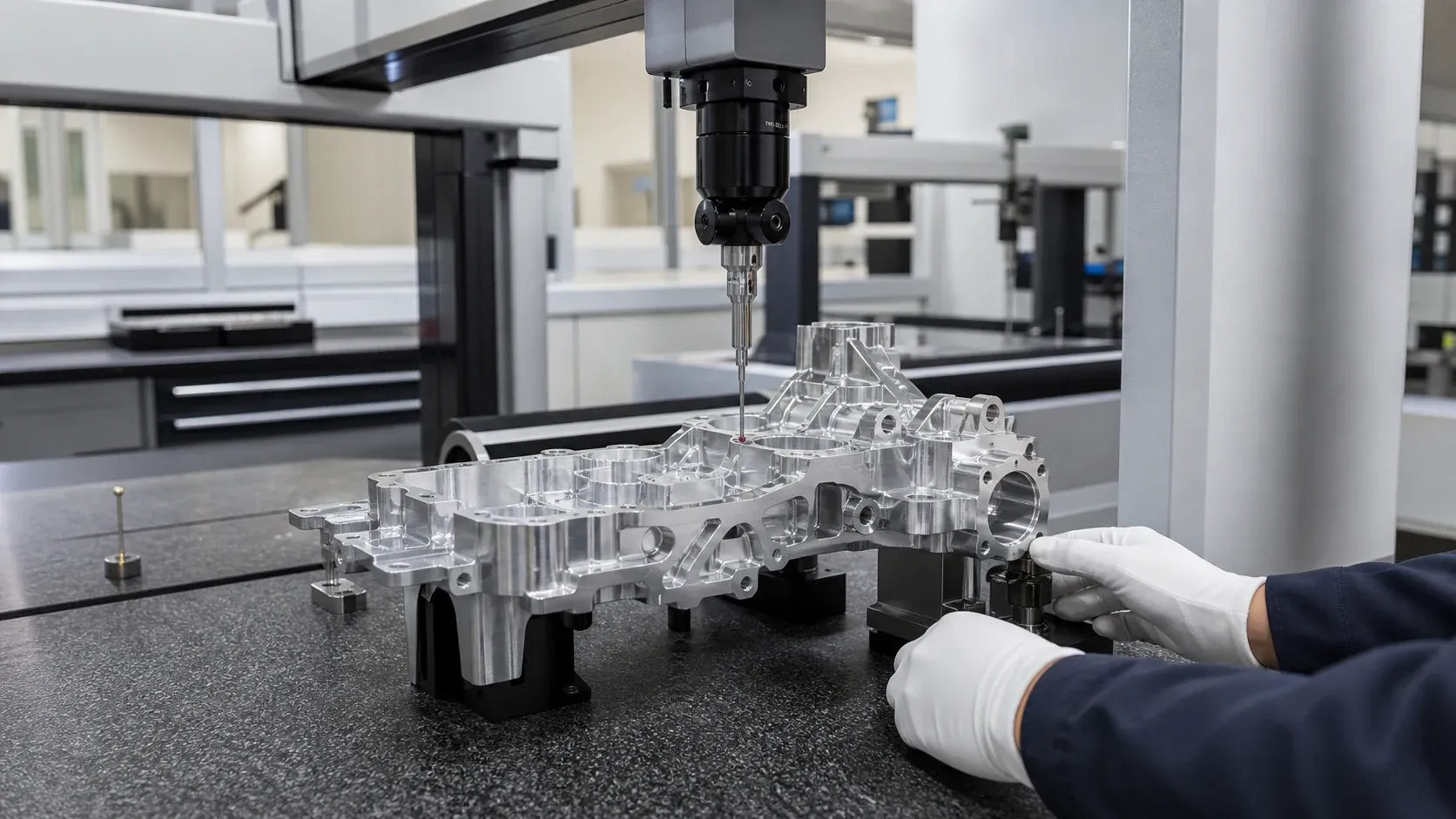

Quality control begins with the approved drawing and acceptance criteria. Golden Rainbow reviews revisions, datums, critical diameters, bores, axial lengths, threads, geometric relationships, material, surface requirements and requested records before production.
Review Our Quality Approach
22
First-Piece and In-Process Inspection

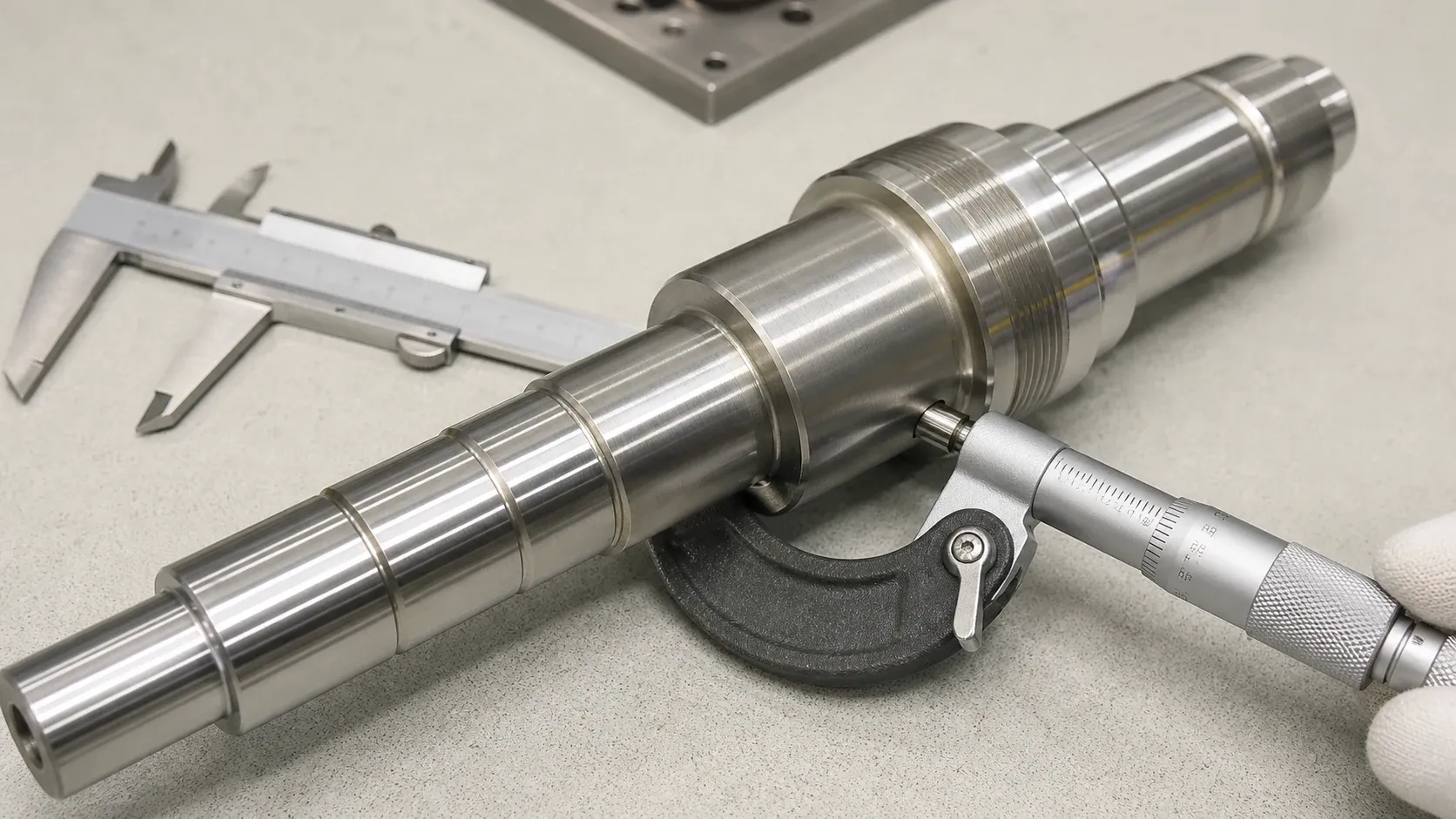

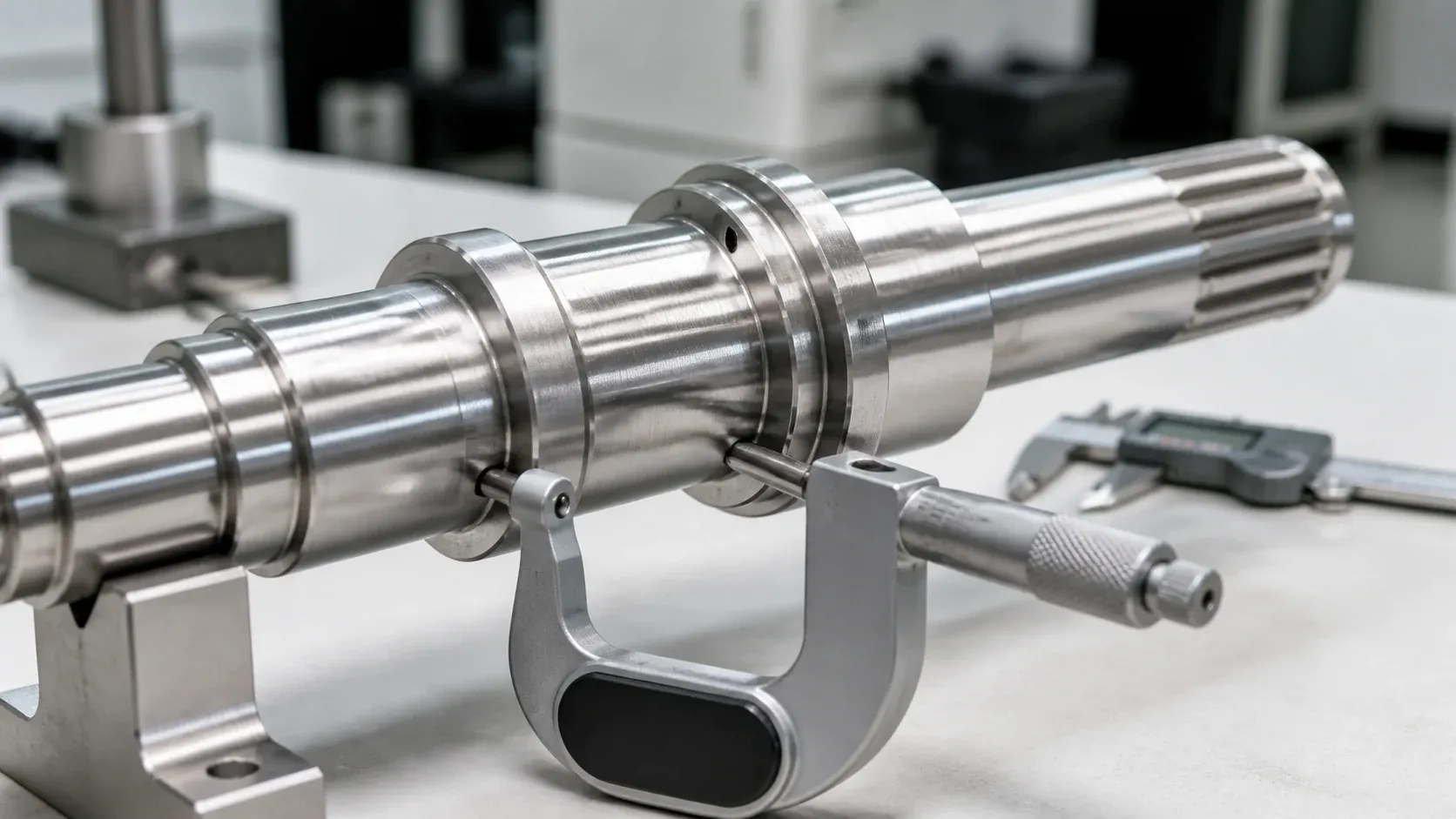

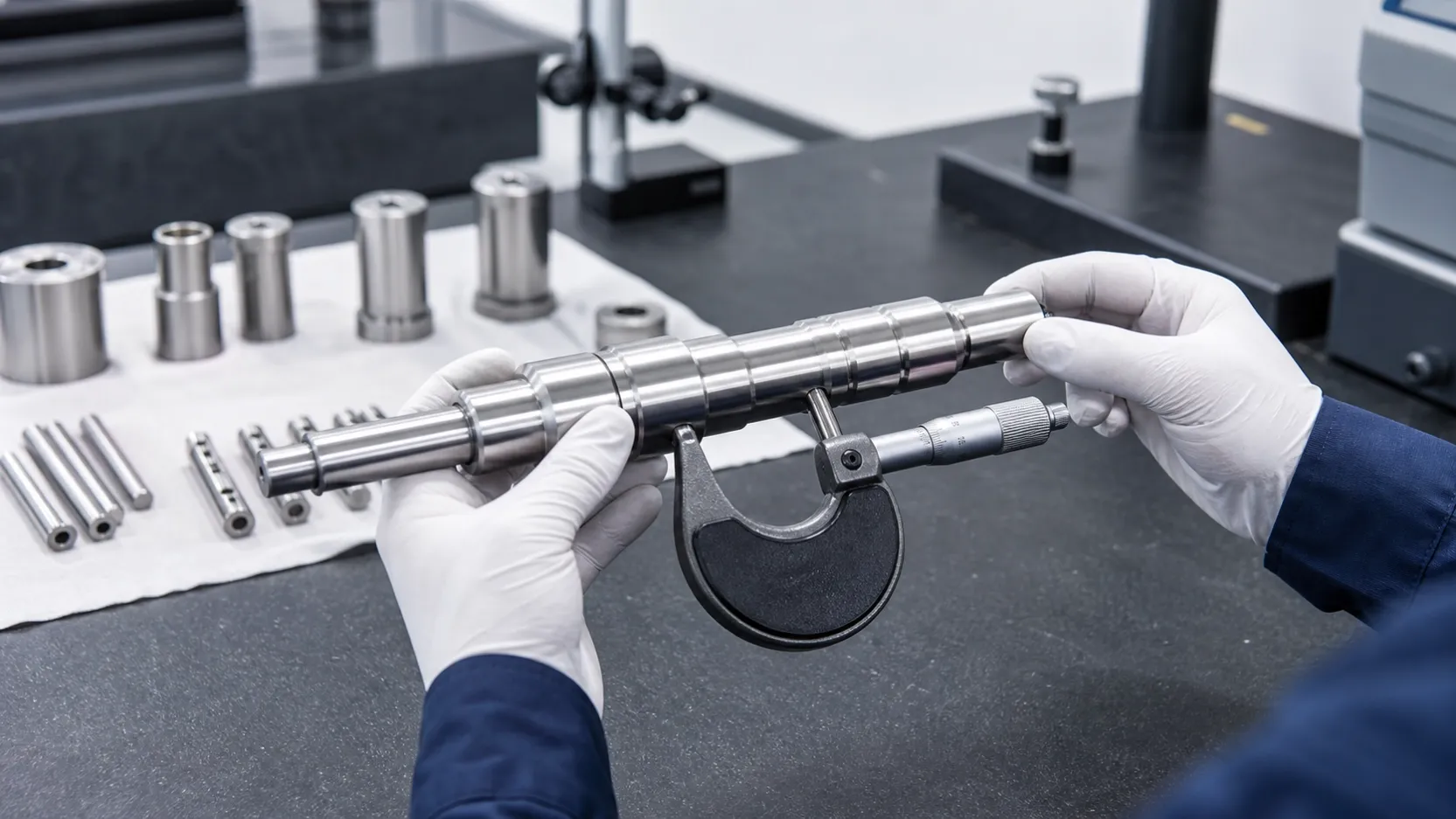

Check initial output before production and monitor selected diameters, bores, lengths, threads and geometric relationships at planned stages.
First piece / process checks
33
Final Inspection and Records
Verify completed turned components and review agreed inspection records, identification, packaging and shipment requirements before release.
Final inspection / records
START YOUR CNC TURNING REVIEW
Send Your Turned Component for Technical Review
Share the drawing and project requirements so Golden Rainbow can review rotational geometry, process route, material, quantity and inspection needs as one manufacturing scope. State any confidentiality or controlled-data requirements before submitting project files.
Drawing
Current drawing and revision
Include the complete drawing, revision and critical acceptance requirements.
Material
Grade, condition and finish
Identify material specification and finishing requirements.
Quantity
Prototype and production volumes
State initial quantity and expected annual or repeat-order volume.
Inspection and Delivery
Records, acceptance criteria and target date
Include documentation needs, delivery requirements and customer clauses.
